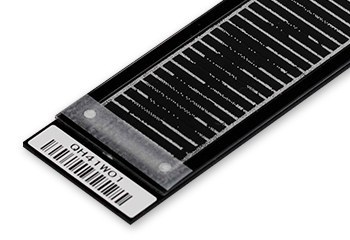

mRNA Oligo chip
To enable exhaustive expression analysis of human genes including those with low expression
The mRNA Oligo chip was selected from the well-established oligo DNA set for microarray from Operon Biotechnologies Inc. - AROSTM v 3.0 and v 4.0. The selection was made with a focus on genes with substantial annotation information. Therefore, a researcher can perform an analysis without being misled by ambiguous information.
The main public databases used in the design of the probes are the following:
Ensembl human database build NCBI-35c (http://www.ensembl.org, database version 30)
NCBI human Refseq release 04/04/2005 (http://www.ncbi.nlm.nih.gov)
H-Invitational Database release 1.8 (http://www.h-invitational.jp)
The following can be accomplished with the use of the Oligo MicroArray DataBase (OMAD) service provided by Operon. One can browse 1) the most recent annotation information of probes; 2) relationships of ortholog gene sequences among humans and mice; 3) synteny; 4) genome data among species; and 5) GO (gene ontology).
Please contact Operon for details on OMAD.
Mounted probe
| Human | Mouse | |
|---|---|---|
| Mounted probe | AROS™ | AROS™ |
| Number of mounted probe | 24,460 | 23,474 |
| Positive control | ACTB | Actb |
| Negative control | Non-human derived sequence | Non-mouse derived sequence |
* For any requested information for 3D-Gene®, please contact us.
